khd fixed system - dual

KHD Fixed System – Dual

Belt Cleaners

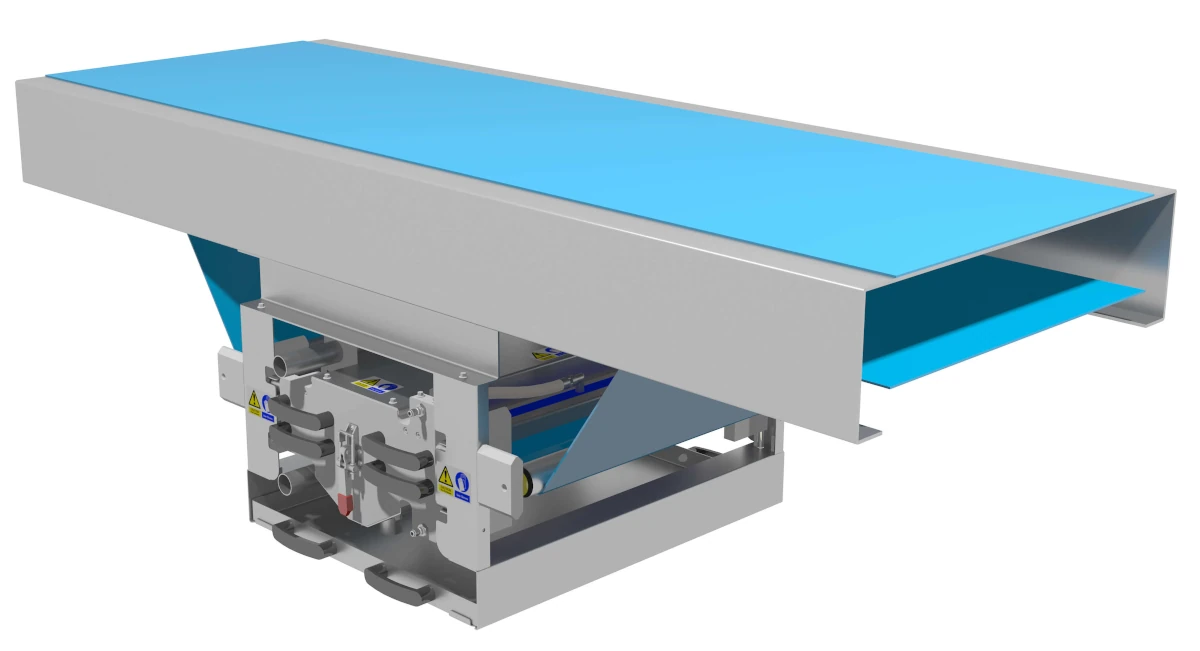

Return mounted steam cleaner for flat belts

A return mounted version of the Brushless System but with careful attention to ease of use and quick removal for cleaning. The dual head version cleans both the food contact side and reverse of conveyor belts with the same results of the Brushless System. Systems can be integrated into factory steam systems or with KHD steam generators. The assembly can be fitted to existing conveyors or new builds.

Features:

  • Simple retrofit installation
  • Opportunity for use during production
  • Very quick to remove for cleaning
  • Rest position away from belt
  • Limit switch positions for system integration
  • Sanitises without resorting to chemicals
  • FDA-approved belt contact materials
  • Wet vacuum with 38mm hose required
  • Customisable to suit conveyor frame fixing

Lead-time: 4-6 weeks

Specifications
Steam Power 9kW - 36kW
Vacuum Via KHD steam generator or standalone
Conveyor sizes Virtually any size
Steam pressure Up to 10 Bar
Made to order Any size in approx 5-6 weeks
Weight 13kg for cleaning head on 1000mm model
